P100 Specific Protein Analyzer
P100 Specific Protein Analyzer is an immunoturbidimetric detection platform featuring a high-stability 630nm laser source, 5-inch capacitive touchscreen, and RFID-based workflow management.
Key Features
Detection Principle
Immunoturbidimetry with high-stability laser source, reliable detection
Easy Operation
Insert reaction cup to auto-start detection, auto-output results
Project Parameters
RF card swipe to switch projects, standard curve/lot/expiry auto-import
HCT Calibration
CRP/SAA built-in HCT calibration algorithm, supports manual editing
Result Output
Auto-flag abnormalities, storage, thermal printing, LIS connection
Detection Speed
Reagent workflow 20-500s flexible editing, meets various scenarios
Precision Temperature Control
Reaction temperature controlled at 37±0.2°C, ensures accurate results
Auto Mixing
Stirring bar oscillation mixing, excellent mixing effect, good repeatability
Software Support
Connect to PC for result management, printing, instrument status, calibration and workflow editing
Wavelength Configuration
Laser wavelength 630nm, supports various turbidimetry project expansion
Modular Design
Modular structure design, convenient assembly, maintenance and upgrade
Calibration Method
RF card swipe to import calibration curve; PC software can fit calibration curve
Technical Specifications
| Parameter | Specification |
|---|---|
| Detection Method | Immunoturbidimetry |
| Detection Workflow | User edits on PC, writes to RF card, instrument gets test workflow and parameters via RF card |
| Interface | RS232, thermal printing/LIS selectable in instrument settings |
| Light Source | High-stability laser source, wavelength 630nm |
| Display | 5-inch capacitive touchscreen |
| Power Supply | AC100-240V/DC12V |
| Model | P100 |
| Dimensions | 210×155×68 mm (L×W×H) |
| Weight | 0.6 kg |
| PC Software | Data analysis / Instrument management / Workflow configuration / RF card reading and writing |
| Software Overview | PC management tool supporting test data collection, storage, query, statistics and printing; real-time instrument status, temperature, optical signal monitoring; calibration curve fitting and test workflow setup; RF card reading/writing for project parameters, standard curves, reagent lot and expiry information |
| Smart Interface | Intelligent operation interface with TEST, PROJECT INFO, QUERY, SETTINGS, and MAINTENANCE modules |
Smart Operation Interface

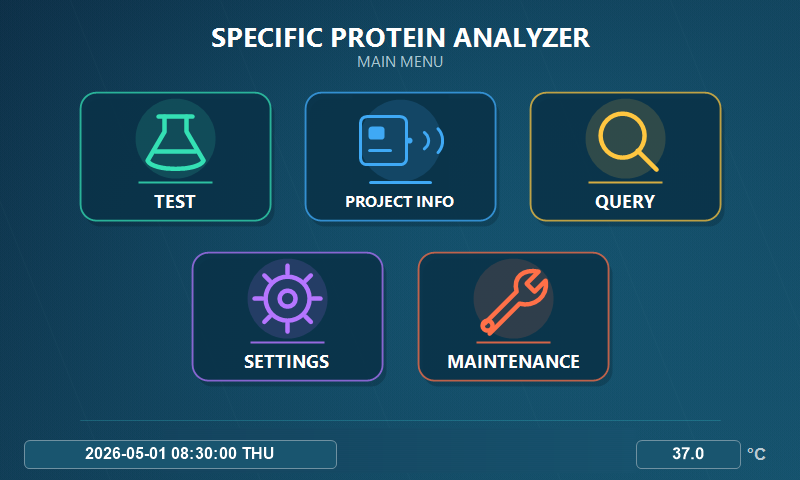

Main Menu - TEST / PROJECT INFO / QUERY / SETTINGS / MAINTENANCE

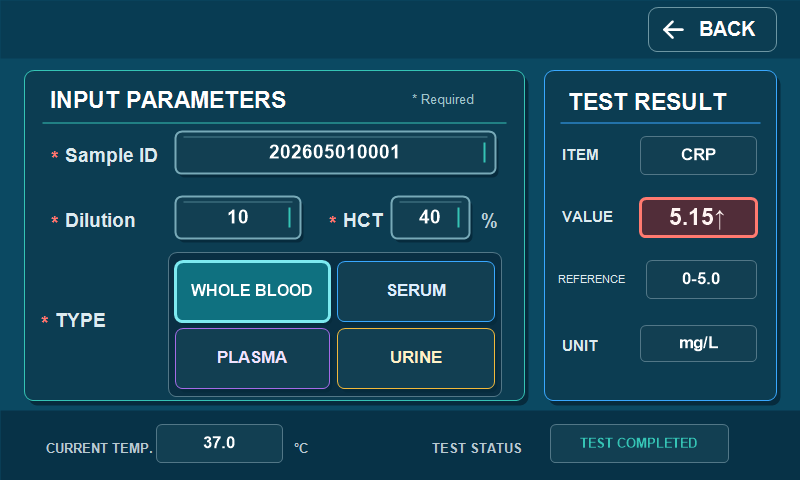

Test Input Parameters & Result Display
Applications
Certifications
